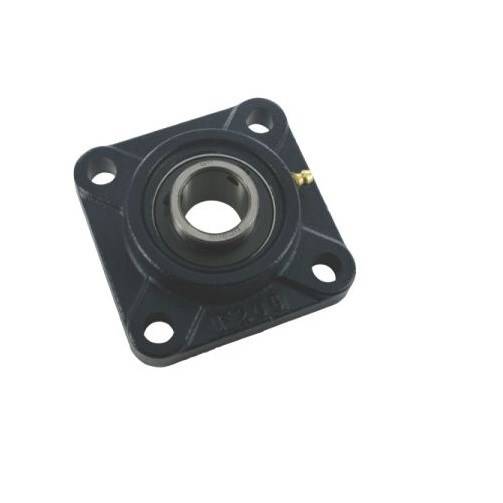

Quadrangular Flange Support UCF208GP

Quality Internal bearing with inner ring extended on two sides with 2 adjustment screws. Technical information - Attention: the color is different from the figure The classic fields of application of this flange support are those of agricultural and construction machines. s ø Hole 16 mm l Height, housing 36 mm Bi Height, inner ring 49.2 mm Z Height 51.2 mm d Internal ø 40 mm g Flange thickness 16 mm a Length 130 mm Distance, from end to inner ring intermediate ball 19 mm and Hole distance 102 mm Distance, mounting side, from intermediate ball bearing 21 mm
